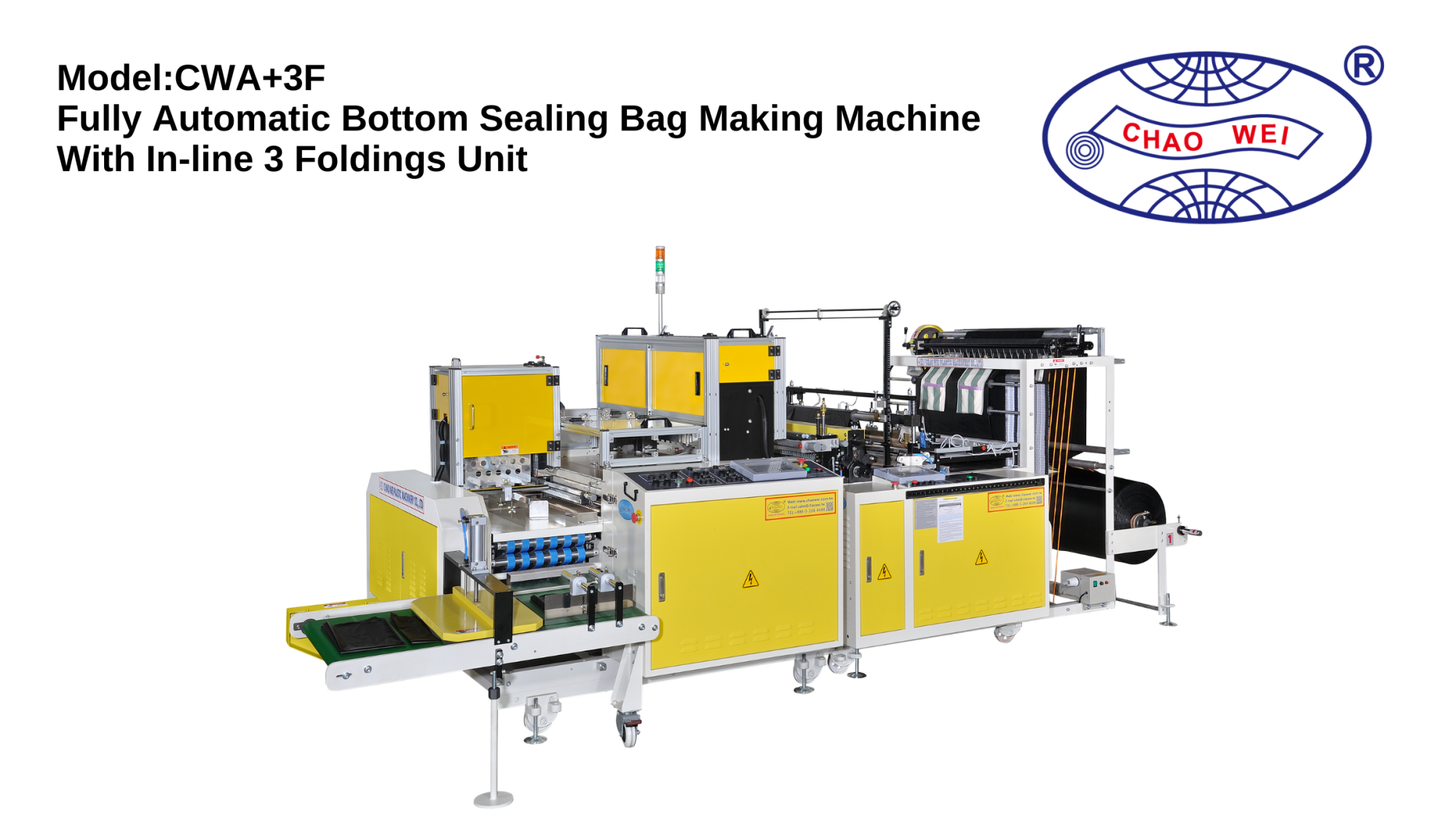

Bottom Sealed Bag Making Machine with In-line Folding Unit

2024-06-20

CWA+3F is for bottom sealed bags with 3 times folding, first 2 times folding of bag’s length and last time folding of bag’s width at maximum speed 80 bags/min.

Machine Features：

• One set Japan made YASKAWA servo motor and servo drive control bag’s length precisely and stable speed, reducing electric consumption.
• Three sets servo motors with servo drives for first 2 times folding of bag’s length and last time folding of bag’s width.
• Two touch screens, one for bag's length and production speed on main machine, another one for timing parameters and quantity per stack on folding unit.
• One set German made SICK photocell for 1 line accurate printed bags.
• Last time folding can be set for single piece or several pieces together according to customer's requirements.
• Automatic conveyor device for collecting finished bags.

Machine stops automatically when：

1. Bags jammed.
2. Film is finished or broken.
3. Temperature below the setting.
4. Print is not at correct position.

Learn more： https://www.chaowei.com.tw/en/products_i_Bottom-Sealing-Bag-Making-Machine-With-In-Line-3-Folding-Device.html
