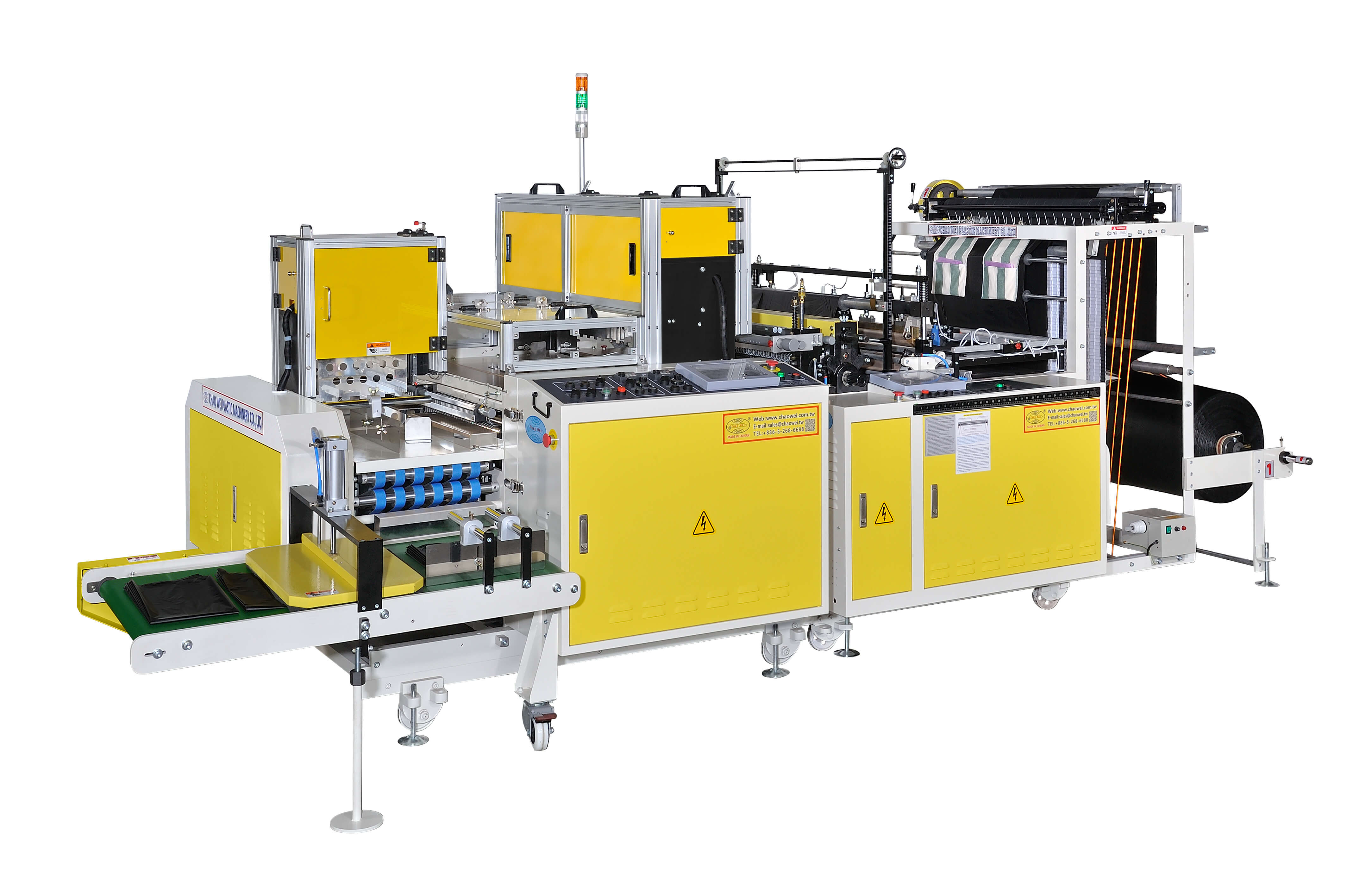

Bottom Sealing Bag Making Machine with 3 Foldings Unit

DESCRIPTION

Fully Automatic Bottom Sealing Bag Making Machine with In-line 3 Foldings Unit

CWA+3F is for 1 line printed or non-printed bottom sealed bags with 3 times folding, first 2 times folding of bag's length and last time folding of bag's width at maximum speed 80 bags/min.

Machine Features:

• One set Japan made YASKAWA servo motor and servo drive control bag's length precisely and stable speed, reducing electric consumption.

• Three sets servo motors with servo drives for first 2 times folding of bag's length and last time folding of bag's width.

• Two touch screens, one for bag's length and production speed on main machine, another one for timing parameters and quantity per stack on folding unit.

• One set German made SICK photocell for 1 line accurate printed bags.

• Last time folding can be set for single piece or several pieces together according to customer's requirements.

• Automatic conveyor device for collecting finished bags.

• Machine stops automatically when:

  1. Bags jammed.

  2. Film is finished or broken.

  3. Temperature below the setting.

  4. Print is not at correct position.
