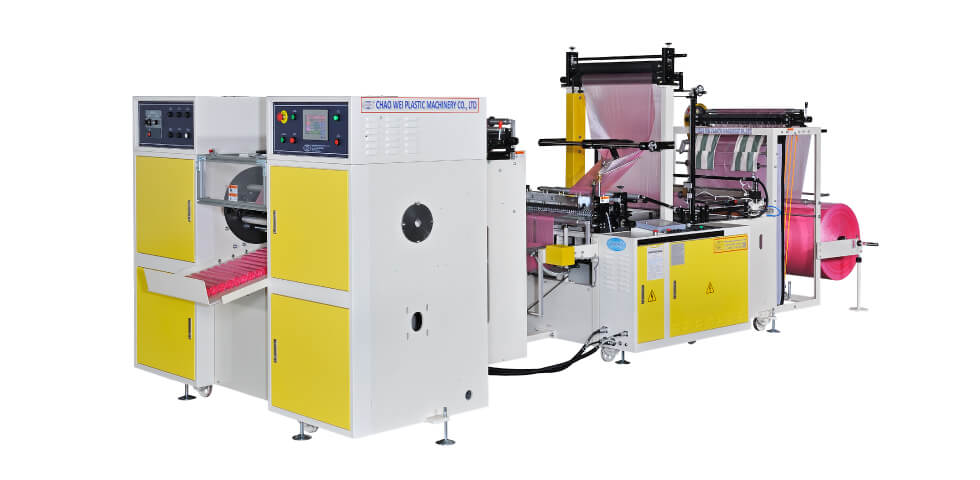

Perforated Coreless Bags on Roll Machine with Double Rewinding Shafts
_cwap+cs_lpic.jpg)
Applications
_3_pic.svg)
Garbage Bag
_12_pic.svg)
Table Cover
DESCRIPTION
Fully Automatic Perforated Coreless Bags on Roll Machine with Double Rewiding Shafts
CWAP+CS is for perforated coreless flat bags, gusseted bags, C or E folded garbage bags, table covers and star sealed bags on rolls at maximum speed 125 pcs/min.
Machine Features:
-
One set Japan made YASKAWA servo motor and servo drive control bag's length precisely and stable speed, reducing electric consumption.
-
Bag's length and production speed can be set easily on the touch screen.
-
One set German made SICK photocell for 1 line accurate printed bags.
-
Up and down heated sealing device for star sealed bags.
-
Folding of the bags can be C, E and star sealed type.
-
Servo driven rewinding shafts for fast changing rolls speed and precise position.
-
Machine stops automatically when:
-
Bags jammed.
-
Film is finished or broken.
-
Temperature below the setting.
-
Print is not at correct position.
-
TECHNICAL DATA
| MODEL | CWAP+CS-500 | CWAP+CS-700 | CWAP+CS-800 | CWAP+CS-1000 |
|---|---|---|---|---|
| Film Roll Width before Folding (mm) | 120 ~ 400 | 120 ~ 600 | 120 ~ 700 | 120 ~ 900 |
| Finished Roll Width (mm) | 120 ~ 400 | 120 ~ 400 | 120 ~ 400 | 120 ~ 400 |
| Max. Bag Length (mm) | 800 | 1100 | 1200 | 1200 |
| Thickness/Layer (mm) | 0.012 ~ 0.035 | 0.012 ~ 0.035 | 0.012 ~ 0.035 | 0.012 ~ 0.035 |
|
Max. Production Speed (bags/min) |
125 | 125 | 125 | 125 |
| Power Required (kW) | 4.0 | 5.0 | 6.0 | 7.0 |
|
Air Volume Air Pressure |
600 L/min 6 kg/cm² |
600 L/min 6 kg/cm² |
600 L/min 6 kg/cm² |
600 L/min 6 kg/cm² |
|
Dimensions L × W × H (cm) |
600 x 230 x 200 | 600 x 230 x 200 | 600 x 230 x 200 | 600 x 230 x 200 |
| Net Weight (kg) | 1300 | 1400 | 1500 | 1600 |
| Gross Weight (kg) | 1700 | 1800 | 1900 | 2100 |
